Types of timing belts

Materials used in Belt. For a belt that touches food directly use one that complies with the applicable food hygiene law of your country.

The right timing belt Timing belt.

Types of timing belts. MXL Mini Extra Light 0080 XL Extra Light 0200 L Light 0375 H Heavy 0500 XH Extra Heavy 0875. FHT Timing Belts Miniature Drive System The FHT Fenner High Torque curvilinear timing belt. Timing Belt Construction Types.

Open-Ended M for linear drive applications. Spliced and Welded V for conveying applications. Truly Endless BFX for power transmission applications Go To Timing Belt Products Page YouTube BRECOflex CO LLC.

404 subscribers Subscribe How. Types of Timing Belts. Timing belts are use on timing pulley as motion device and for the work output.

There are many different types of pitch. Which vary by belt type. For a belt that touches food directly use one that complies with the applicable food hygiene law of your country.

Use of belt which does not comply. Note the shape of the timing belt pulley teeth tooth profile. If the valley between the teeth is curved than it is an HTD style timing belt.

If the valley between the teeth is flat than it is and PolyChain GT style timing belt. The timing belts magnitude of belt installation tension matters due to the impact of different loads of torque gathered by belt tracking. Timing belts might not seem like it but they are as fragile as glass.

This synchronous device might be hampered from working if its operating environment affects its process. There are two types of timing belt strength - tooth shear strength and tensile strength. Learn the difference and the factors that contribute to each type.

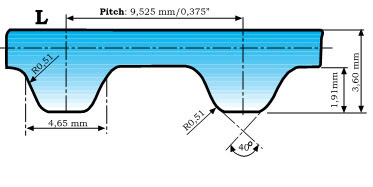

A timing belt timing chain or cambelt is a part of an internal combustion engine that synchronizes the rotation of the crankshaft and the camshafts so that the engines valves open and close at the proper times during each cylinders intake and exhaust strokesIn an interference engine the timing belt or chain is also critical to preventing the piston from striking the valves. Timing belt pitch refers to the center-to-center distance between the center of one tooth on a pulley to the center of the adjacent tooth. The timing belt tooth profile describes the shape of the tooth that is designed specifically for the type of application on which the timing belt pulley will be used.

The right timing belt Timing belt. The metric dimension belts commonly feature both trapezoidal and round tooth profiles. Trapezoidal tooth shape with metric dimensions.

Further development of the T-profile resulted in the formation of the. Round tooth shape with metric. Common timing belt materials include neoprene and polyurethane.

Neoprene is a rubbery material that can flake after extended use and is typically black and fairly flexible. Polyurethane is typically slick and is a little more rigid especially in larger sizes. Often times polyurethane will be clear or white but it can also be black.

While using the same pulleys as v-belts cogged belts manage to run cooler last longer and increase efficiency by 2 from standard v-belts. This type of belt drive often referred to as timing belts boast a 98 efficiency which is maintained over a wide load range. The rubber-made belt opens and closes engine valves with the pistons in a synchronized fashion.

In modern vehicles this belt has taken the place of the timing chain. The failure of the belt causes less damage to the pistons and valves than the belt. Dreamstime When a car has multiple belts they are called v-belts.

Serpentine v-belts timing belts need checking and replacing on a regular basis. Before you replace a drive belt you have to know which kind you have. This is an alternate type of belt.

Timing belts are mainly used inside internal combustion type the system to transmit power. Timing belts are a positive drive. It is a precise and reliable type of belt.

Materials used in Belt. For choosing belt material the material should follow some properties which are. Timing belts synchronous belts With friction-locking belt types such as flat belts and V-belts slippage will occur which reduces the efficiency and control accuracy accordingly.

However this can be prevented by toothed belts as the teeth attached to the belt surface then transmit the force positively. Slippage cannot take place. Description Transmission Belt Details Ordering Information We maintain one of the largest inventories of timing belt sleeves readily available to slit and ship and have access to one of the countrys biggest warehouses of power transmission products at our immediate disposal.

Urethane Neoprene Sizes in Inch Inch Range. MXL XXH Sizes in Metric Metric Range. T25 AT20.
