Types of cv joints. Types of CV Joints 1 Rzeppa CV Joint. The Rzeppa outer CV joint is the most common joint type. An engineer by the name of Alfred H.

2 Fixed and Plunge Joints. A plunge joint is an inboard joint within front-wheel drive applications. A fixed joint is.

3 Plunge Joints Tripod. 5 Types Cv Joints 1 PlungeFixed JointsYour standard front-wheel drive vehicle contains a plunge joint and fixed joint. 2 Tripod Ball-Type JointsWhen you install an inner plunge joint in a front-wheel drive vehicle it can be a.

3 Rzeppa JointsRzeppa joints are used regularly. Inboard Outboard Joints Front-wheel drive vehicles have drivetrains with two constant-velocity joints per half shaft. There is an inner constant-velocity joint and an outer constant-velocity joint.

A CV joint may operate efficiently up to 80 deviation from a straight line. By operating in pairs larger angles are possible. The effective life of a CV joint will generally be shortened as joint angle increases.

CV joints are effective for high velocity power transmission where operating angles are acute. Constant-velocity joints also known as homokinetic or CV joints allow a drive shaft to transmit power through a variable angle at constant rotational speed without an appreciable increase in friction or playThey are mainly used in front wheel drive vehicles. Modern rear wheel drive cars with independent rear suspension typically use CV joints at the ends of the rear axle halfshafts and.

Ball Plunging VL Joint. The VL ball plunging joint is a popular choice for the inboard joint of rear-wheel drive CVJ sideshafts. The CV line up pictured in order consists of a Type 1 Bug a Type 4 Porsche 924944VW Thing-181 Type 2 Bus and separately pictured the.

EMPI Type 1 VW Beetle CV Joint For 33 Spline Axles With Stock CV Cage Fits 1969 To 1979. GKN Stock German Type 24 VW Bus CV Joint For 33 Spline Axles With Stock CV Cage Fits 1968 To 1979. There are two most often used types of CV joints.

A ball-type and a tripod-type. A CV axle has two CV joints an inner joint and an outer joint. Constant Velocity Driveshaft Types.

CV-1 Bolt on type CV and U-Joint at differential. CV-2 Bolt on CV type and flat flange at differential. Most vehicles that use CV joints use a combination of styles.

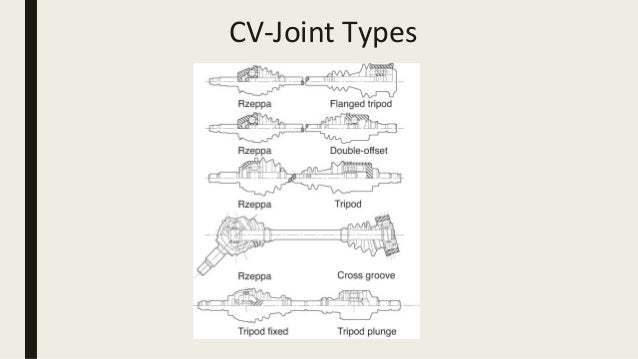

The three CV joint styles most popular in modern vehicles are Rzeppa tripod and double Cardan joints. There are two basic types. Ball-and groove CV joints called Rzeppa joints after the person who invented them and tripod CV joints.

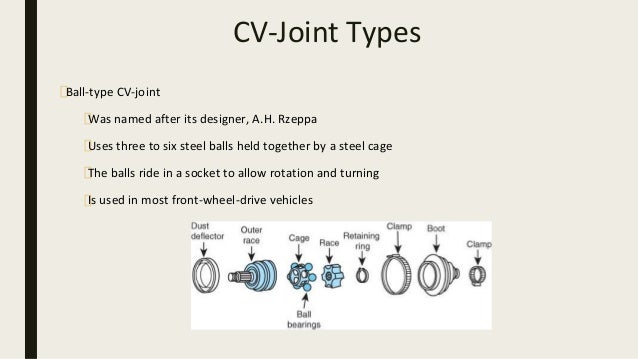

Rzeppa CV joints which are used as the outer joints on most front-wheel drive cars and minivans consist of a cup-shaped outer housing a centre race and cage assembly. Ball type CV Joint is a common type of CV Joints that is distinguished based on its design. A ball type joint could be a fixed joint or a plunge joint depending on the requirements and applications.

Fixed ball type joints are also known as Rzeppa joints and they are known for their performance frictionless motion and durability. The two most commonly used types of CV joints are the ball-type and tripod-type. In front-wheel drive vehicles ball-type CV joints are used on the outer side of the drive shafts outer CV joints while the tripod-type CV joints are mostly used on the inner side inner CV joints.
