REESE Towpower 4-Way Flat Trailer Wiring Connector is a 60 1524 cm wire for replacement and repair of trailer wiring connections on the tow vehicle. Installing the 4-Pin Trailer Wires You must check the trailer manual to see if the wiring is correct but normally the white wire is called the ground wire while the brown wire is used for tail lights.
4-Way Trailer Wiring 4-Way trailer connectors are typically used on small trailers such as boat snowmobile utility and other trailers that that do not use brakes.
Four plug trailer wiring. Prepare for Vehicle Wiring Installation If your vehicle already has a 4-way connector then great. Simply plug the trailer-end connector into the vehicle-end connector and youre ready to roll. If your vehicle does not have a 4-way connector its usually pretty simple to add one.

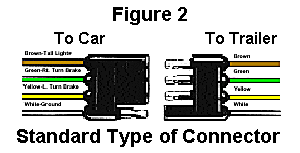

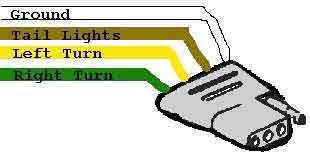

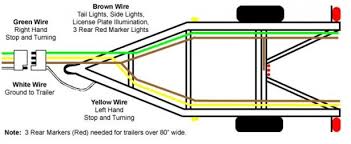

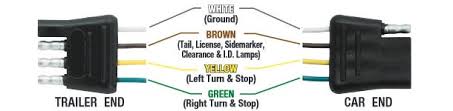

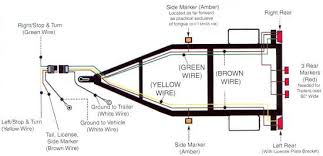

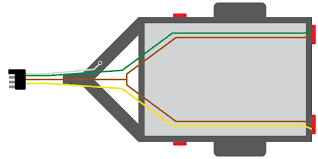

Just keep in mind that wiring is a custom component. Installing the 4-Pin Trailer Wires You must check the trailer manual to see if the wiring is correct but normally the white wire is called the ground wire while the brown wire is used for tail lights. Yellow and green are for left and right turns and braking.
Start by cutting the white wire and attaching it to the trailer frame. EXERAUO Trailer Wiring Kit 4 Flat Trailer Wiring Harness Extension Connector 25ft 4ft Wishbond Trailer Light Kit 4 Wire Plug Connector for Utility Trailer Lights. 46 out of 5 stars 119.
5 coupon applied at checkout Save 5 with coupon. Get it as soon as Mon Feb 1. EXERAUO Trailer Wiring Kit 4 Flat Trailer Wiring Harness Extension Connector 25ft 4ft Wishbond Trailer Light Kit 4 Wire Plug Connector for Utility Trailer Lights.
46 out of 5 stars 120. 5 coupon applied at checkout Save 5 with coupon. Get it as soon as Wed Feb 3.
Learn how to repair a trailer wiring harness that was damaged when borrowed by someone who did not connect the wiring to their vehicle. This is a very simple. 4-Way Trailer Wiring 4-Way trailer connectors are typically used on small trailers such as boat snowmobile utility and other trailers that that do not use brakes.
As the name implies they use four wires to carry out the vital lighting functions. The four wires control the turn signals brake lights and taillights or running lights. Trailer Wiring Connectors Various connectors are available from four to seven pins that allow for the transfer of power for the lighting as well as auxiliary functions such as an electric trailer brake controller backup lights or a 12V power supply for a winch or interior trailer lights.
Product Title 4 Way Flat Trailer Wiring Harness Plug 14 Gauge Trai. 5 out of 5 stars based on 1 reviews 1 ratings. Current Price 595 5.
Product Title 12411E Trailer Wiring Connector Adapter 4-Way Black Average rating. 0 out of 5 stars based on 0 reviews Current Price 1077 10. 77 List List Price 1413 14.
REESE Towpower 4-Way Flat Trailer Wiring Connector is a 60 1524 cm wire for replacement and repair of trailer wiring connections on the tow vehicle. View Details REESE Towpower Looped 2 Way Flat 12-in 2 45 out of 5 stars. REESE Towpower Looped 2 Way Flat is designed for 12 volt systems.

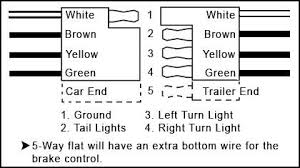

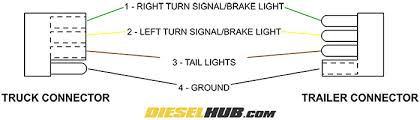

You have it right so far the 4-way connector is just as you have stated. Remember that Yellow has a L in it so that is the left side braketurn signal and green has a R in it so that is the right side braketurn signal. The colors for wiring a 7-way connector are as follows with the 4 colors of the 4-way connector remaining the same.
A taillight converter or electrical converter splices into your vehicle and provides a standard trailer plug wiring connector typically a 4-way flat. The converter converts the vehicles complex wiring system to be compatible with your trailers simple wiring system. Hopkins Towing Solutions 7 RV Blade Connector with Trailer Side Plug Plastic 48505.
Product Rating is 4. 44 7 was save. Save Up To.
Hopkins Towing Solutions Vehicle Wiring Kit 4 to 7 Connector 47205. Product Rating is 4. 45 6 was save.

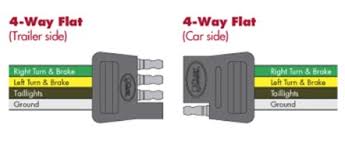

At a minimum all trailers need at least 4 functions. Tail lights Brake lights Left Right signals. 4 wires will give these functions so the simplest scheme is a 4-pin connector.
The most common 4 wire connector is the 4-Pin Flat Connector as shown here. CARROFIX Trailer 4 Wire Plug 32 inch 4 Pin Flat Wire Extension Male Female Connector. Super repairman Trailer 4-Wire Plug 36 Inch 4 Pin Flat Wire Extension Male and Female Connector with Dust Cover.
Simply plug the trailer-end connector into the vehicle-end connector and youre ready to roll. IF YOU HAVE A 4-WAY CONNECTOR If your vehicle has a 4-way connector the easiest way to add a 7-way is with an adapter kit like the ETBC7 which includes everything you need to convert your 4-way into a 7-way. SUZCO 25 Foot 4 Wire 4-Flat Trailer Light Wiring Harness Extension Kit 4-Way Plug 4 Pin Male Female Extension Connector Wishbone-Style with 18 Gauge White Ground Wire with SAE J1128 46 out of 5 stars 1340.
Product Overview This spool of 16-gauge bonded wiring includes 25 feet of color-coded wire for rewiring a trailer or splicing in a connector. The 4-wire construction can be used for either 4-way flat or 4-way round plugs and sockets. Standard 4-way wire for rewiring a trailer or a similar application.
